HDD Machines
Horizontal Directional Drilling (HDD) machines are used for trenchless installation of underground pipes, cables and conduits where open excavation needs to be reduced. Synergy Rigs Africa supplies HDD machines for utility, pipeline, telecommunications and infrastructure projects across Africa. Equipment can be selected according to bore length, installation diameter, ground conditions, pullback requirements and available working space.
Horizontal Directional Drilling Equipment
HDD equipment creates a controlled underground bore from an entry point to an exit point without opening a continuous trench.
The installation normally involves pilot drilling, bore enlargement and product pullback. The HDD machine, tooling and drilling-fluid system should be matched to the ground conditions and size of the utility being installed.
HDD Machines for Different Development
Different crawler drilling configurations are available according to the drilling method and project requirements.
Rock HDD Machines
Configured with suitable rock tooling and drilling systems for projects involving competent or challenging formations.
Utility-Class HDD Machines
Designed for water, power, telecom and conduit installations requiring greater drilling and pullback capacity.
Heavy-Duty HDD Machines
Used for larger pipelines, longer crossings and projects requiring higher thrust, pullback and rotary torque.
Compact HDD Machines
Suitable for smaller utility installations, short bores and projects where working space is limited.

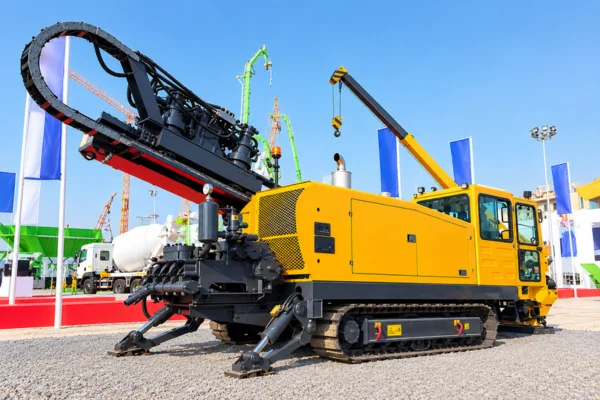

Features of HDD Machines
Actual specifications vary according to the HDD machine model.
- High pullback and thrust capacity
- High-torque rotary head
- Hydraulic drilling controls
- Guided pilot drilling capability
- Adjustable drilling angle
- Drill rod handling system
- Compatible reaming equipment
- Drilling-fluid pump compatibility
- Rock-drilling options
- Compact and heavy-duty configurations
What Determines the Right HDD Machine?
HDD machine selection should be based on the complete installation requirement rather than drilling distance alone.
Site Space
Entry area, machine dimensions, drill-rod handling and access should be considered where projects are carried out in developed or restricted locations.
Drilling Fluid Requirements
Mud-pump capacity and drilling-fluid management are important for cuttings removal, bore stability and reaming performance.
Pullback Capacity
Pullback force should be suitable for the product pipe, bore length, enlarged bore and expected ground resistance.
Rotary Torque
Torque affects the machine's ability to rotate drill rods, pilot tooling and reamers through the formation.
Bore Length and Diameter
Longer crossings and larger installation diameters can require higher machine capacity and different tooling.
Ground Conditions
Clay, sand, mixed formations and rock require different pilot tools, reamers and drilling approaches.
Applications of HDD Machines
Pipeline and utility construction
Renewable-energy infrastructure
Road and highway crossings
Telecommunication conduits
River and canal crossings
Industrial utility lines
Underground power cables
Fibre-optic cables
Railway crossings
Water pipelines
Gas pipelines
Sewer lines
Why Synergy Rigs Africa for HDD Equipment?
Project-Based Machine Selection
Equipment requirements can be discussed according to bore length, installation diameter, ground conditions and required pullback capacity.
Technical Equipment Guidance
Customers can provide project specifications before purchasing so machine capacity and supporting equipment can be reviewed together.
Different HDD Capacities
Compact, utility and heavier-duty HDD configurations can be considered for different installation requirements.
HDD Tooling Support
Compatible drill rods, bits, reamers and supporting equipment can be discussed together with the machine.
Ground-Condition Consideration
Machine and tooling requirements can be selected according to soil, mixed ground or rock conditions.
FAQ About HDD Machines
1. What equipment is needed for HDD drilling?
Typical equipment includes drill rods, pilot bits, reamers, swivels, mud pumps and locating tools, selected according to bore size and ground conditions.
2. How does an HDD machine work?
The machine first drills a guided pilot bore, the hole is then enlarged using a reamer, and the required pipe or conduit is pulled through the prepared bore.
3. What pullback capacity is required for HDD?
Required pullback capacity depends on installation diameter, pipe type, bore length, ground conditions and expected resistance during pullback.
4. Can HDD machines drill through rock?
Selected HDD machines can work in rock when equipped with suitable rock-drilling systems and tooling.
5. What equipment is needed with an HDD machine?
Common supporting equipment includes drill rods, pilot bits, reamers, swivels, pullback tools, mud pumps and locating equipment.
6. Can HDD machines install pipes beneath roads and railways?
Yes. HDD is commonly used for trenchless utility crossings where continuous surface excavation is undesirable.
7. What affects HDD machine price?
Price depends on machine capacity, pullback force, rotary torque, drilling-fluid system, drill rods, tooling and additional equipment.
8. What information is needed before buying an HDD machine?
Provide the required bore length, installation diameter, utility type, ground conditions, site space and expected pullback requirements.
