Mining Drilling Machines & Rigs for Africa

Synergy Rigs is a leading manufacturer and exporter of mining drilling machines, rigs, and equipment for Africa. Our mining rigs are engineered for surface and underground mining operations, built to withstand harsh African terrains. We specialize in blast hole drilling rigs, DTH drilling machines, rotary drilling machines, and core drilling rigs that ensure maximum productivity, durability, and safety.

APPLICATIONS OUR PRODUCTS

Types of Mining Drilling Machines We Offer

Synergy Rigs provides a comprehensive range of mining drilling rigs designed for surface mining, underground mining, and exploration. Below are the major types explained in detail

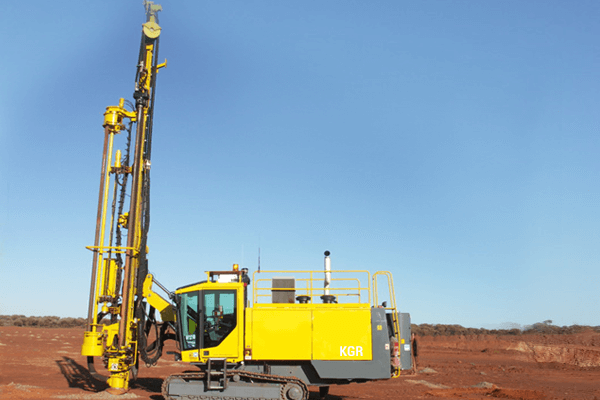

Blast Hole Drilling Rigs

Blast hole drilling rigs are crucial for open-pit mining and large excavation projects, creating precise holes for explosives to fragment rock. They offer high penetration speed and can drill large-diameter holes, supporting both rotary and DTH drilling systems. These rigs are ideal for coal mines, iron ore pits, limestone quarries, and pre-blasting in construction projects.

Core Drilling Machines for Mining

Core drilling machines are essential for mineral exploration, extracting cylindrical rock samples for analysis. They feature precision drilling capabilities, often reaching depths of up to 1000 meters, using diamond or tungsten carbide bits for hard formations. These machines are ideal for gold, copper exploration, and geotechnical investigations.

DTH (Down-The-Hole) Drilling Rigs

DTH (Down-The-Hole) drilling rigs are specialized for hard rock formations, utilizing a pneumatic hammer for efficient rock penetration. Powered by high-pressure air compressors, they excel in deep and tough boreholes. Commonly used in blast hole drilling and mining for both metallic and non-metallic minerals.

Rotary Drilling Rigs for Mining

Rotary drilling rigs are ideal for soft to medium soil formations, using rotating drill bits and mud circulation for efficient borehole stability and cuttings removal. They are cost-effective for shallow to mid-depth drilling and have a simple design, making maintenance easier. These rigs are commonly used in open-pit coal mining and drilling in sandy or clay-rich terrains.

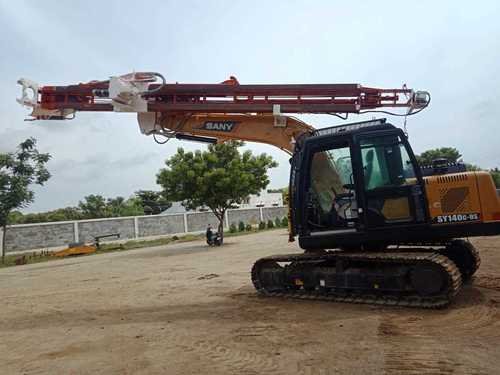

Crawler Mounted Mining Rigs

Crawler-mounted mining rigs offer exceptional mobility on rugged terrains, providing stability and traction with their crawler tracks. They are ideal for remote mining sites, mountainous, or desert regions, and are well-suited for large-scale projects requiring frequent relocation. Available with DTH or rotary drilling configurations, they ensure flexibility in challenging environments.

Underground Mining Drilling Rigs

Underground mining drilling rigs are compact machines designed for tunneling, shaft sinking, and underground boreholes. With a focus on safety and high drilling accuracy, these rigs are ideal for confined spaces and meet strict mining safety standards. They are perfect for underground mineral extraction, ventilation boreholes, and safety drilling in mines.

Applications of Our Mining Drilling Rigs

Our Mining Drilling rigs are designed for water well drilling, ensuring reliable access to clean water in residential, agricultural, and industrial areas. They are widely used for geotechnical investigations, soil testing, and mineral exploration. These rigs also support irrigation projects, helping farmers maintain consistent water supply. Additionally, they are ideal for construction and infrastructure projects, providing stable foundations and essential water sources.

Water well construction (urban and rural)

Agricultural irrigation

Mining exploration and mineral extraction

Piling rigs for construction foundations

Blast hole drilling in quarries

Geotechnical drilling rigs for soil testing

Environmental investigation rigs

Key Components of Our Drilling Machines

Our drilling machines are engineered for performance and durability, featuring advanced components that ensure efficient and safe operations. Below are the key components explained

Drill Mast

The drill mast provides critical structural support to the drilling assembly. It ensures stability during operations, particularly during deep drilling in challenging mining environments.

Rotary Head / DTH Hammer

The rotary head supplies the necessary torque for rotary drilling, while the DTH hammer uses percussion to break through hard rock. Both are vital for penetrating various soil and rock types efficiently.

Hydraulic System

The hydraulic system powers the mast movement, drill rotation, and feed systems, ensuring smooth operation. It enables precise control over the drilling process, increasing efficiency and safety.

Air Compressor or Mud Pump

The air compressor provides the compressed air needed for DTH hammer operations. Alternatively, the mud pump circulates drilling fluid to clear debris and stabilize the borehole in rotary drilling applications.

Control Panel

The control panel offers an intuitive interface for operators to manage drilling operations. It also provides real-time monitoring to ensure safety and smooth functioning of the machine.

Crawler or Truck Base

The crawler or truck base ensures the machine’s mobility across rugged mining sites. It allows the drilling equipment to move easily through uneven terrain, improving overall operational flexibility.

Our Mining Drilling Rig Equipments

Showing all 2 results

How to Choose the Right Mining Drilling Rig

Type of Operation: Surface mining vs underground drilling.

Rock Hardness: DTH rigs for hard rock; rotary rigs for soft formations.

Depth & Diameter: Match rig capacity to project specifications.

Mobility Needs: Crawler rigs for remote areas; truck-mounted for large sites.

Power System: Choose hydraulic rigs for high torque and efficiency.

Maintenance and After-Sales Support

Lubricate moving parts regularly to prevent wear.

Check hydraulic oil and air systems for leaks.

Inspect drill rods, bits, and hammer systems for damage.

Clean air compressors and mud pumps to maintain performance.

Follow OEM service schedules for engines and gear systems.

Why Choose Our Mining Drilling Rig

Built for African Mining Conditions

Handles rocky, semi-arid, and mountainous terrains

High Performance

Advanced hydraulic rotary drilling rigs and DTH systems for deep drilling

Durable Design

Heavy-duty structure ensures long service life

Custom Solutions

Tailored rigs based on depth, diameter, and geological conditions

Strong After-Sales Support

Training, spare parts, and technical assistance across Africa

FAQ'S

What types of mining drilling rigs do you offer?

We offer blast hole drilling rigs, DTH machines, core drilling rigs, rotary rigs, crawler-mounted rigs, and underground mining drilling rigs.

Are your rigs suitable for African terrains?

Yes, they are designed for hard rock, abrasive soils, and harsh conditions in African mining zones.

Do you provide spare parts and service?

Yes, we offer on-site service, operator training, and genuine spare parts across Africa.

What is the drilling depth of your rigs?

Our rigs can drill from 100 meters up to 1000 meters, depending on the model and application.

Can you customize rigs for specific projects?

Absolutely. We provide tailor-made mining drilling machines based on your project needs.
